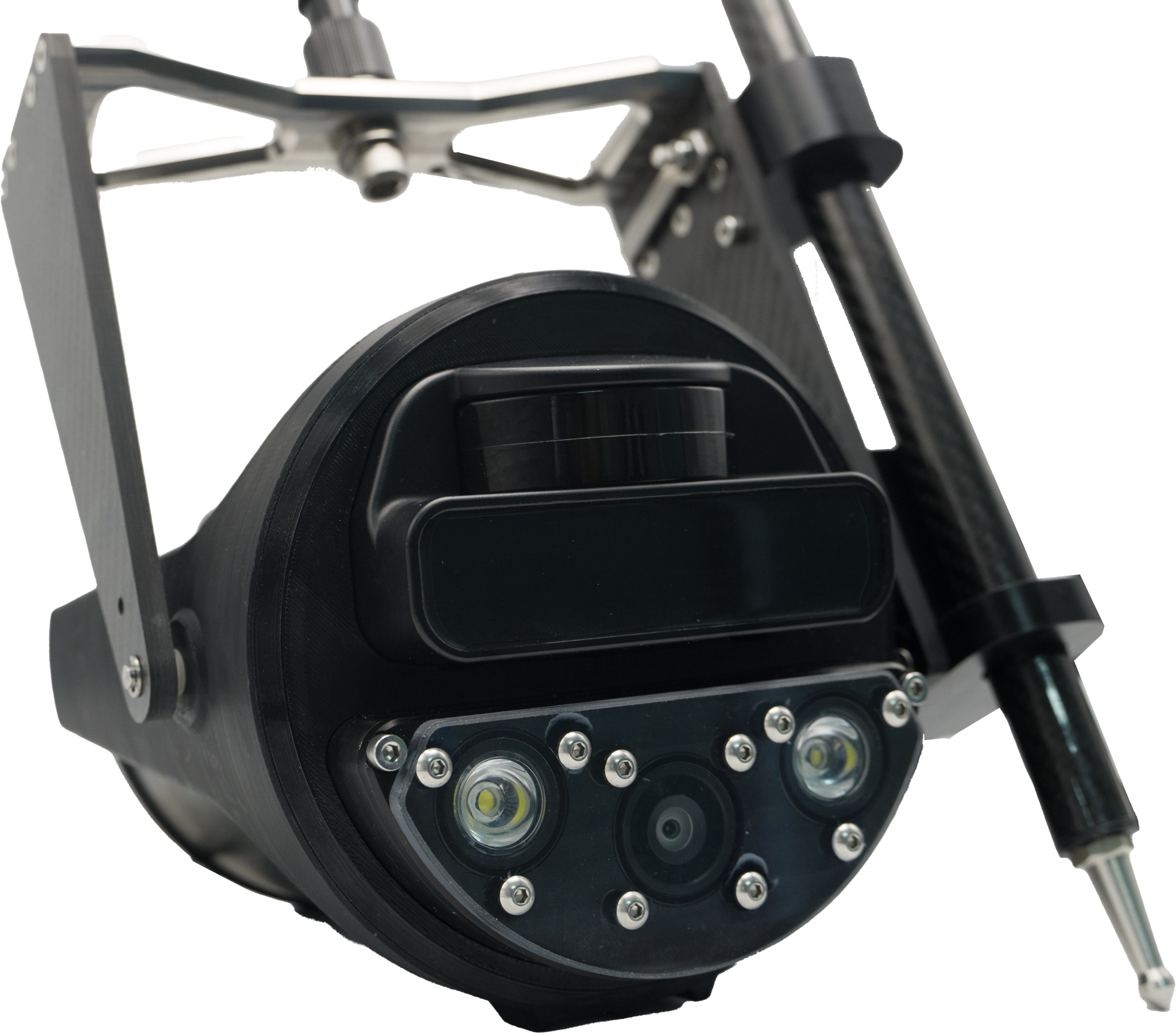

Sonar View SVF-1 High-Water Pipeline Inspection System employs high-resolution, long-range imaging sonar unaffected by water turbidity or flow velocity, featuring an adjustable control rod for submerged operations to rapidly inspect underwater structures, pipeline connections (branch quantity, orientation, material, diameter, length, invert elevation), flow patterns, and sedimentation. Capable of horizontal, 90° lateral, and 45° vertical scanning, it addresses municipal drainage challenges by enabling real-time underwater diagnostics in flooded pipelines, overcoming technical limitations in inspection, sealing, and repair workflows for pressurized pipe networks.
Features

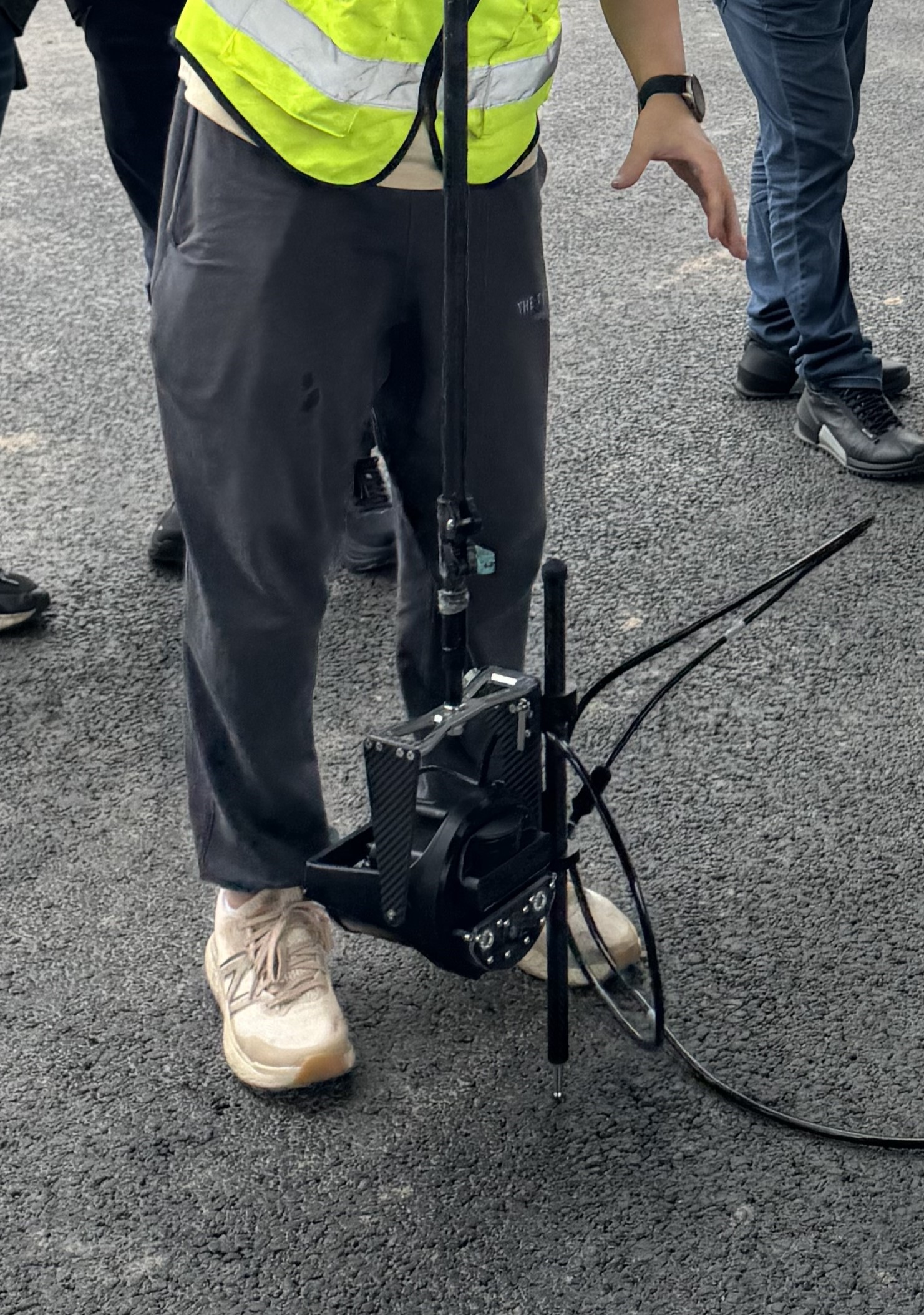

Single-Operator Deployment

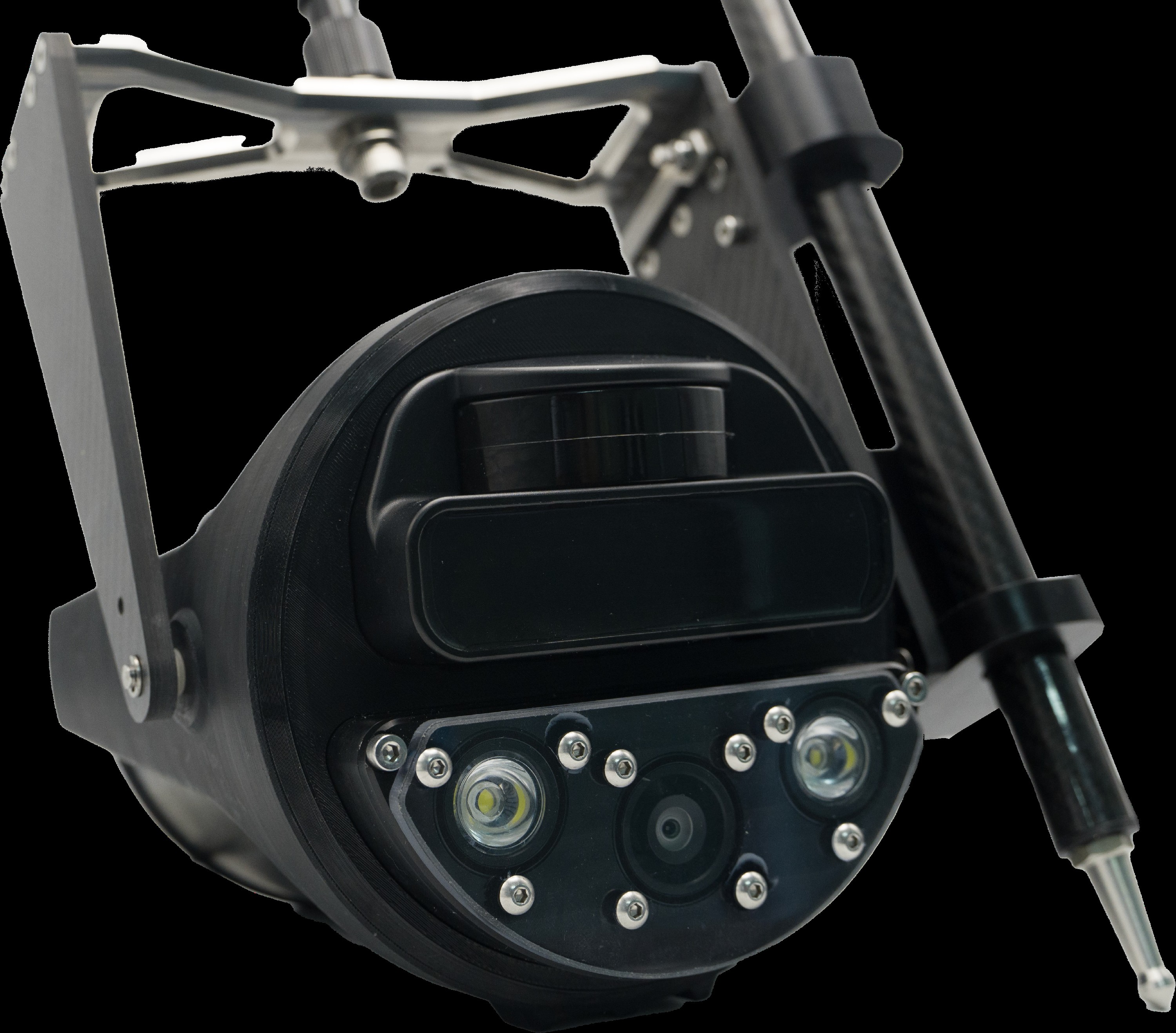

Sonar View SVF-1's compact, portable design enables rapid response, 3-minute deployment, accurate underwater target detection, stable performance in complex conditions.
Acoustic-Optic Integration

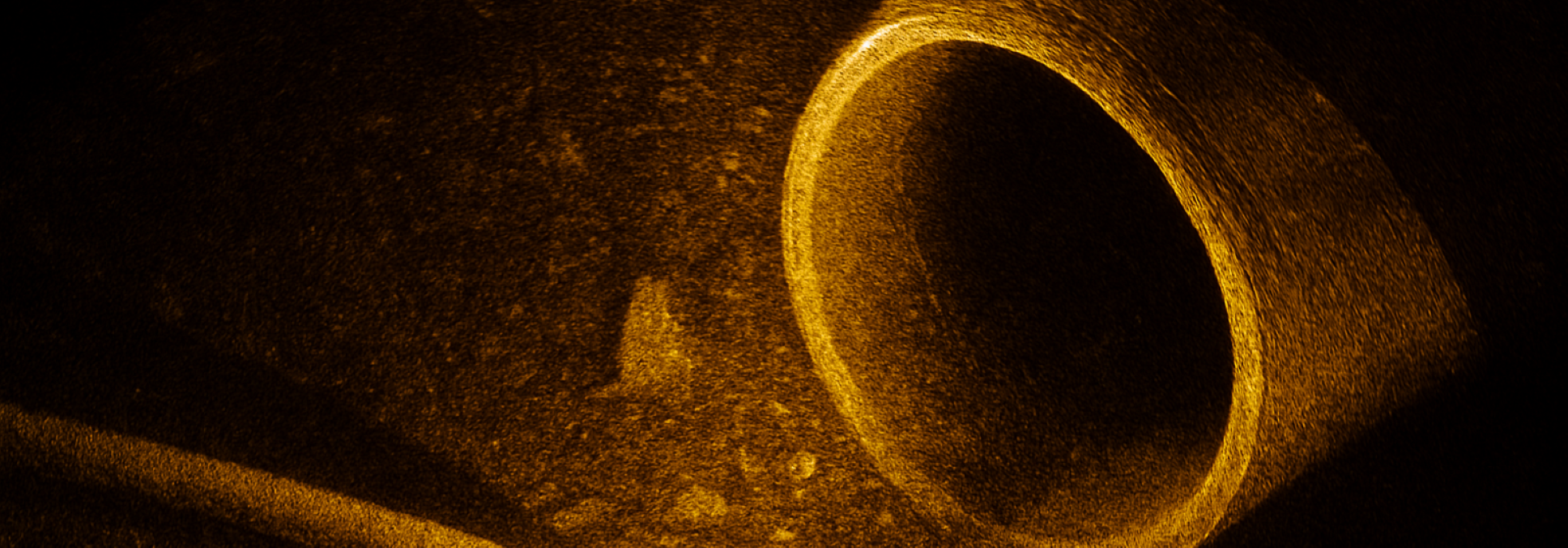

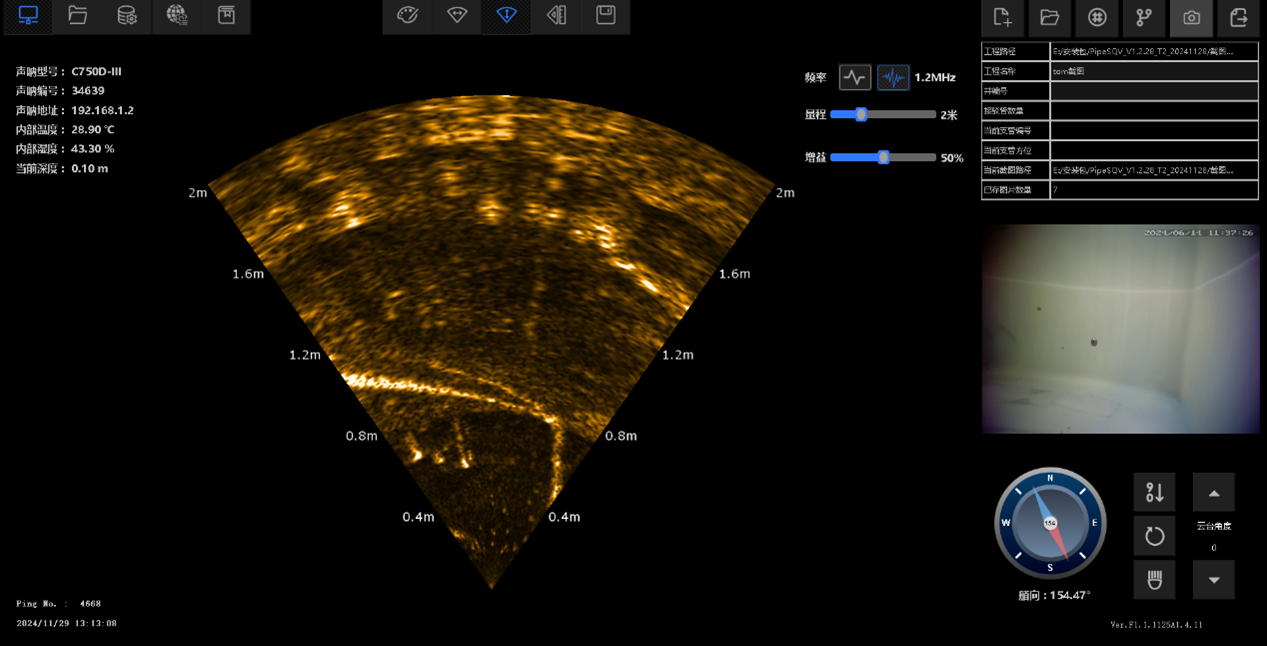

Combined surface optical and submersible acoustic scanning via user-friendly interface. Efficiently maps pipe structures and sediment buildup, solving high-water-level pipeline inspection challenges.

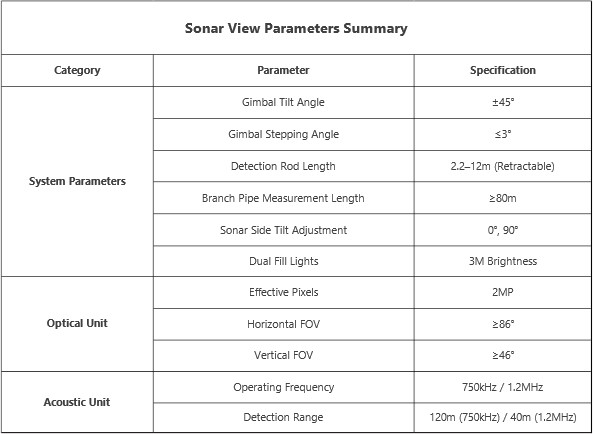

Specifications
Cass

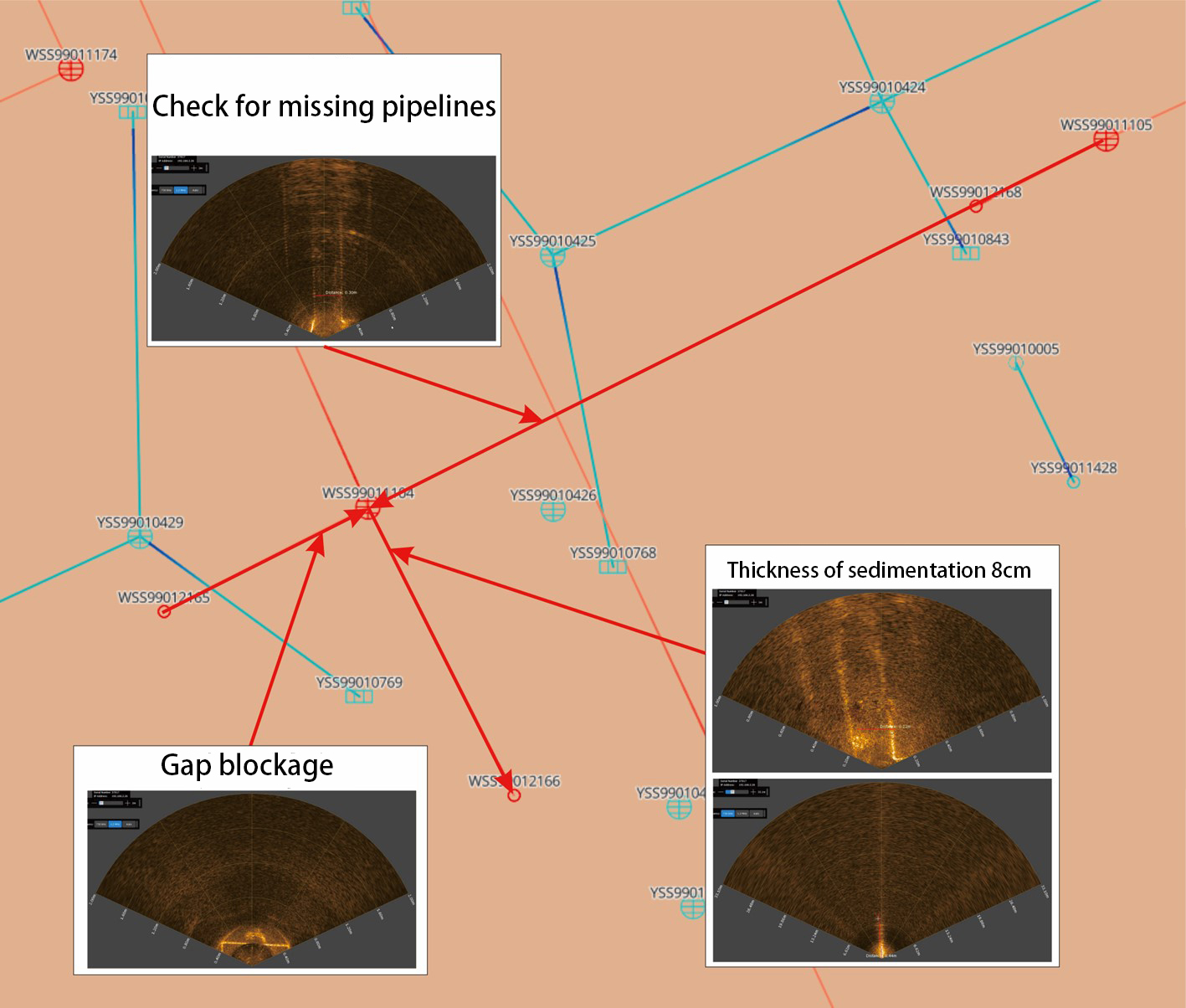

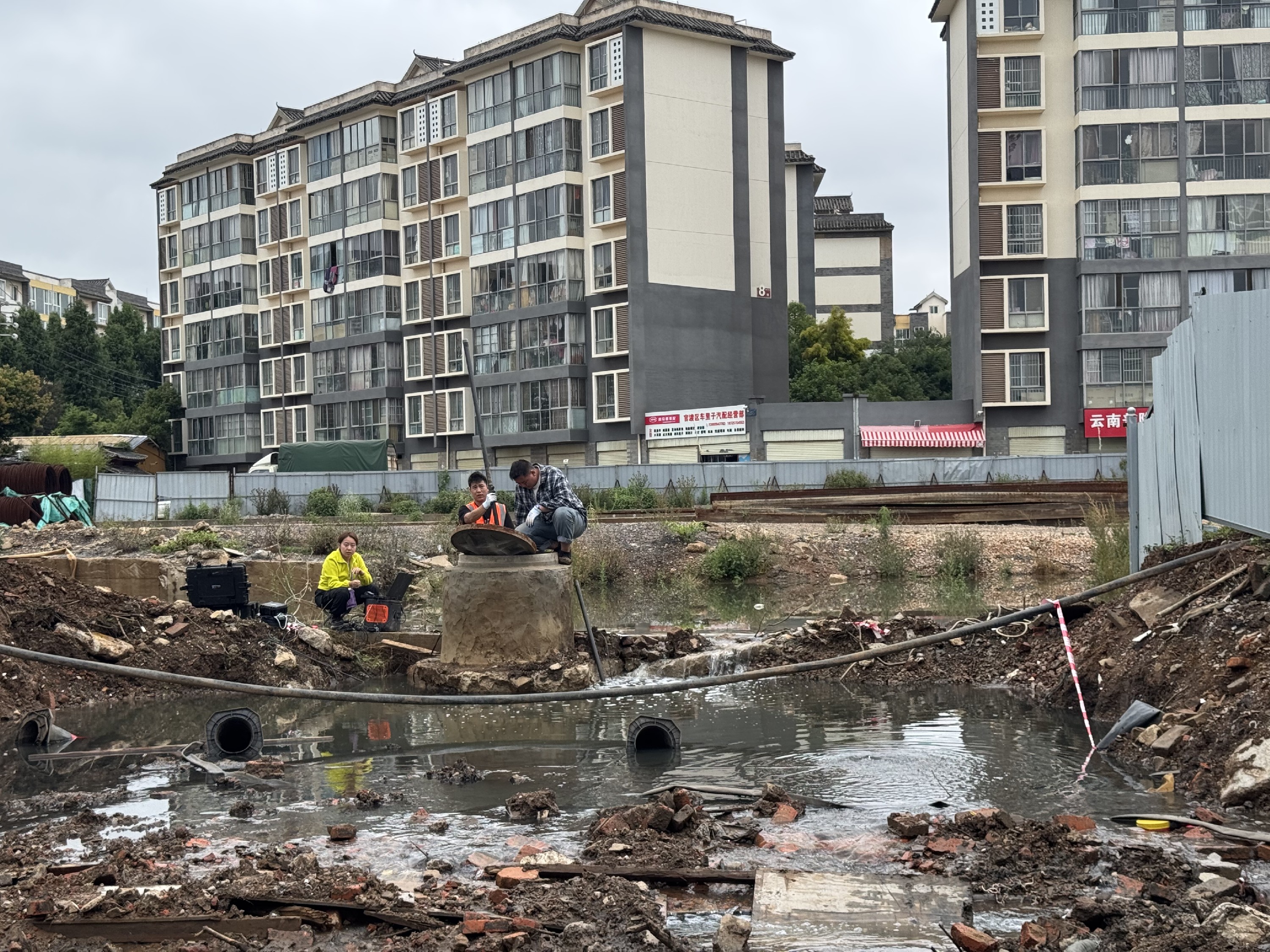

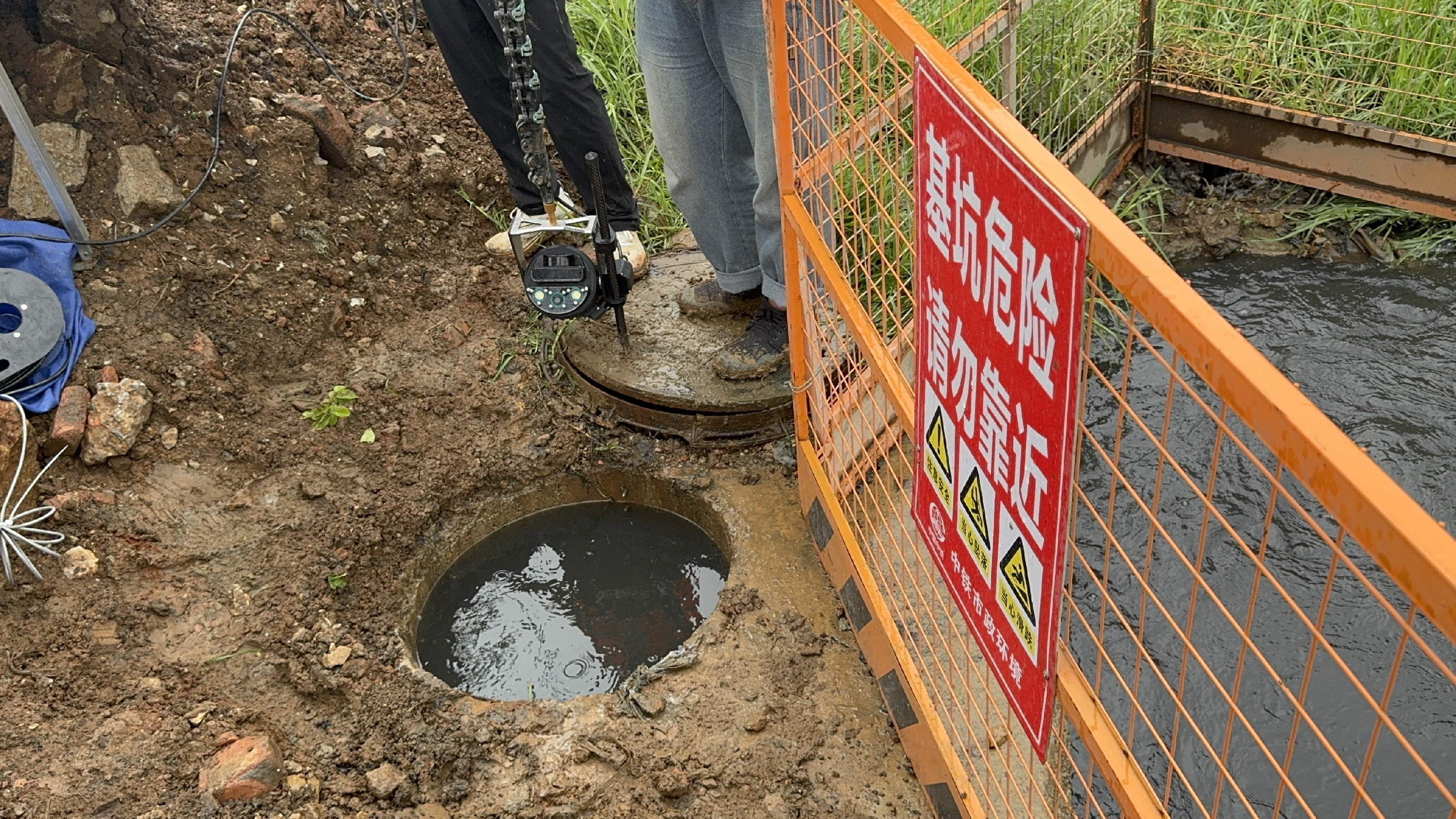

Municipal Sewer Applications
High-water pipeline junction detection, flow capacity assessment, water direction analysis.

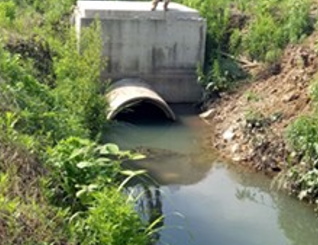

River Outfalls
Underwater discharge traceability, pollution sourceidentification.
Gate Dynamic Water
Rapid structural defect detection (shape/size/sur-face) in flowing water near sluice gates.
